Validate a YAML configuration file for BEC

Overview

Validate a YAML file before loading it to BEC, so you can catch syntax and connection problems early.

Prerequisites

  • You have the BEC Python environment activated.
  • You know the path to the YAML file you want to validate.
  • If the connection should be tested, you can access the underlying devices from the machine where you run the validation.

1. Run a static validation

To validate the structure of a device configuration file, run:

ophyd_test --config ./path/to/my/config/file.yaml

This checks whether the configuration can be parsed and validated as a BEC device configuration.

2. Check whether devices can also connect

If you also want to test device creation and connection, add --connect:

ophyd_test --config ./path/to/my/config/file.yaml --connect

Use this when the target environment has access to the underlying devices, and you want to catch connection issues before loading the config into a running session.


3. Load the file after validation

Once the file validates successfully, load it from the BEC IPython client:

bec.config.update_session_with_file("./path/to/my/config/file.yaml")

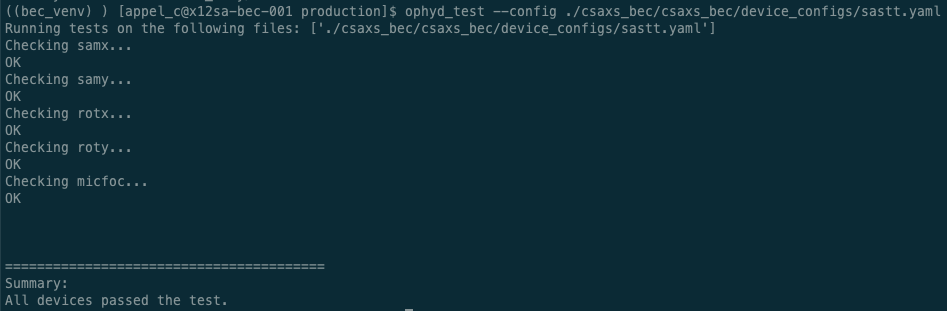

Congratulations!

You can now validate a device configuration with ophyd_test before loading it to BEC.

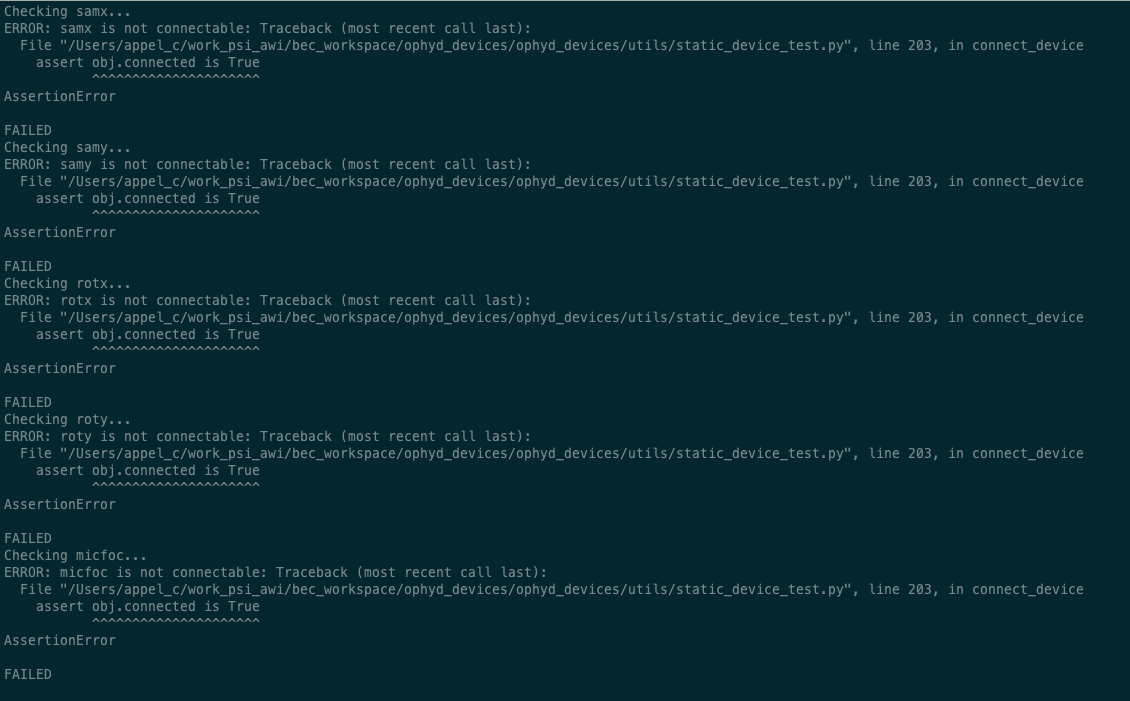

Validation was not successful

If you encounter validation errors, these details are printed in the terminal. In addition, running the test also writes a report to ./device_test_reports/<file_name>.txt in the current working directory. This file includes an overview of the encountered errors during the test run, and is helpful to identify and fix problems in the configuration file.


Common Pitfalls

  • A static validation does not prove that all devices are reachable. Use --connect when you also need a connection check.
  • A successful validation does not replace reviewing the loaded device session. After loading the file, inspect the device session using dev.show_all() in the client.
  • Connection checks depend on where they run. A file may validate on one machine but fail to connect on another machine if the network or device availability differs.
