Clients¶

Clients are the main entry points through which users interact with BEC. They connect to the same backend architecture, but the backend services remain responsible for orchestration, device access, synchronization, and file writing.

This means that user-facing tools can stay comparatively lightweight, because they do not need to re-implement the core acquisition logic locally. Because the backend owns the orchestration state, BEC can also support any number of clients in parallel. Multiple users, tools, or services can observe and interact with the same running system at the same time.

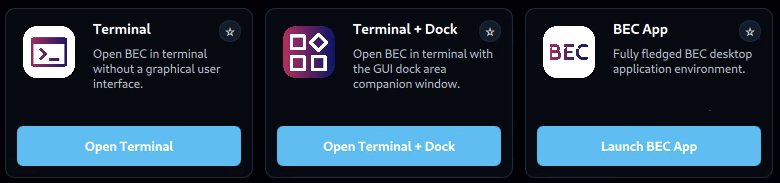

Supported Client Modes¶

BEC currently supports three main client modes:

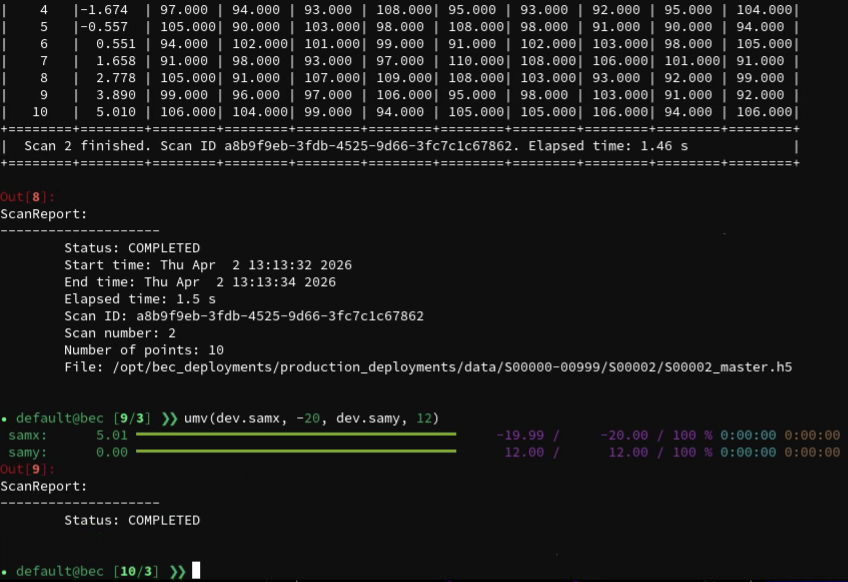

Terminal¶

The terminal client is the most direct way to work with BEC. It is typically centered around the BEC IPython client and is well suited for interactive beamline control, scripting and macros. It usually gives users the most flexible interface and a direct access to the underlying system, but it may require more familiarity with the command line and Python.

This mode is a good fit when users want:

• direct interactive control
• a scriptable environment
• fast access to devices, scans, and results from the command line

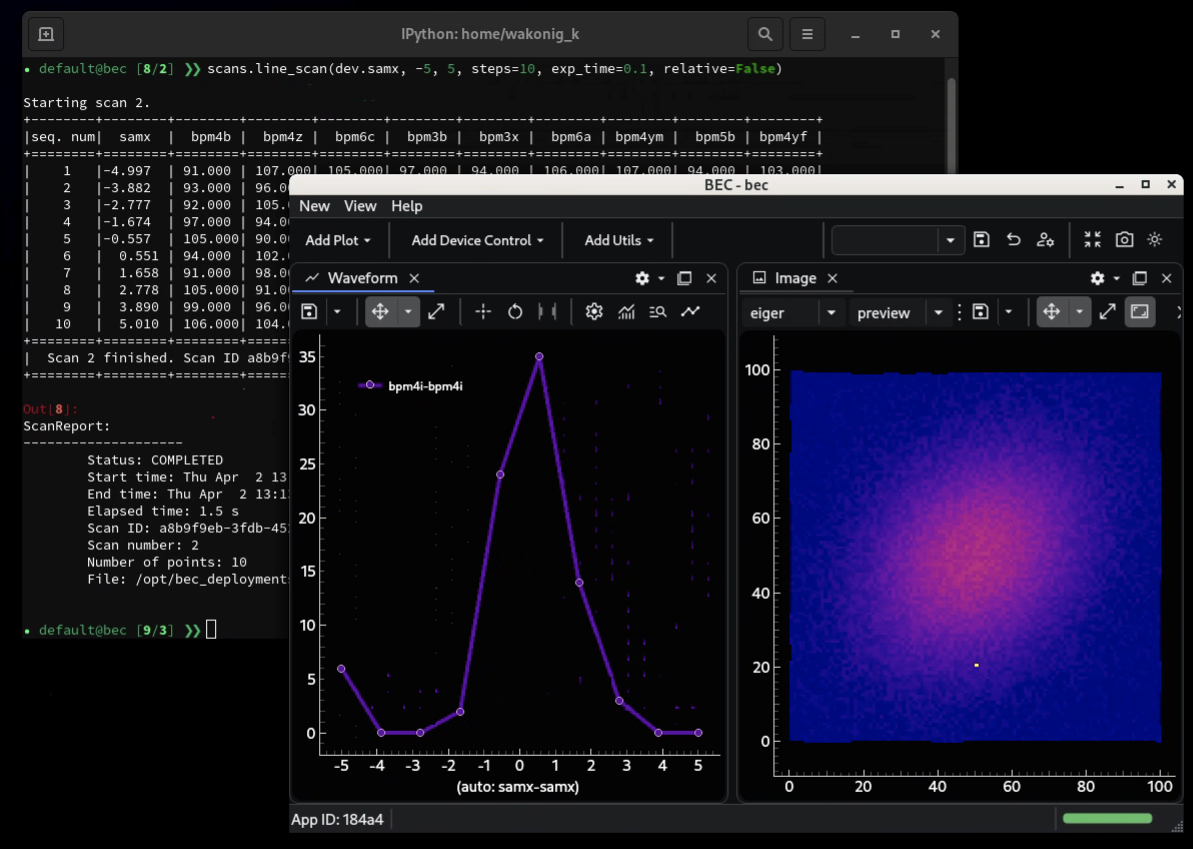

Terminal + GUI¶

BEC also supports mixed workflows in which the terminal remains the main control interface while one or more GUIs are opened alongside it.

This is often the most flexible operating mode. The terminal can be used to launch scans, inspect state, or run scripts, while graphical tools provide richer views of queues, plots, widgets, or specialized beamline interfaces.

The GUI is always launched as a separate process, so it can be closed and reopened without affecting the terminal session. Moreover, if for some reason the GUI process crashes or becomes unresponsive, the terminal client remains unaffected and can be used to restart the GUI or continue working without it. This separation also allows users to choose different GUI tools or versions without impacting their terminal workflow.

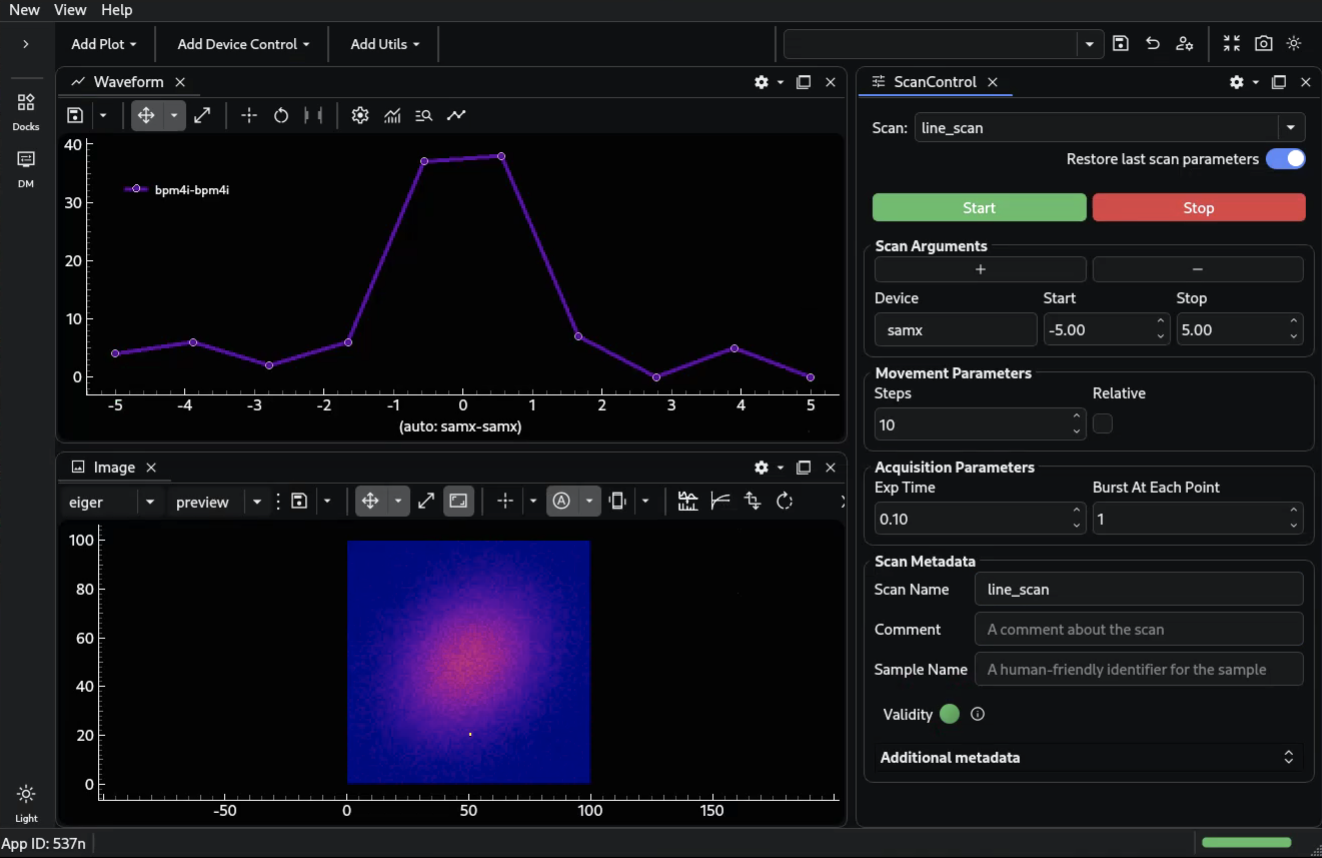

BEC App¶

The BEC App provides a fully-fledged application for the system. In this mode, users can work primarily through application windows and widgets rather than through the terminal.

This is useful when users want:

• a more guided graphical workflow
• shared beamline-specific widgets
• interfaces that are easier to operate without command-line interaction

Shared Client Model¶

All of these client modes connect to the same backend architecture. In practice, a client sends requests, observes queue and scan status, displays progress and data, and may expose higher-level helper APIs such as bec.history.

Because they all share the same backend model, users can switch between these modes without changing the underlying orchestration logic. This is also why several clients can run in parallel against the same system.

Event-Driven Interaction¶

This event-based architecture fits graphical user interfaces naturally. GUIs are themselves event-driven systems: they subscribe to state changes, react to user actions, and update views asynchronously. In BEC, a GUI can listen to queue events, progress updates, device readouts, and file notifications directly from the shared event streams, without needing its own orchestration backend.
